Wear resistance SISIC silicon carbide ceramics liner manufacturer
High wear resistance SiSiC material Silicon carbide Ceramic Cyclone Liner
1.Property:
A. Superior wear resistance, impact resistance and corrosion resistance
B. Excellent flatness and temperature resistance up to 1380℃
C.Excellent oxidation resistance
D.Good dimensional control of complex shapes
E. Easy installation
F. Longer service life ( about 5 times more than that of alumina ceramic and 6 times more than that of polyurethane)
2. Applicaion of RBSiC ( SiSiC ) silicon carbide sic cyclone parts / cyclone lining with high hardness :
RBSiC ( SiSiC ) silicon carbide sic cyclone parts / cyclone lining with high hardness has high hardness, high temperature, abrasion resistance, oxidation resistance, acide and alkali resistance characteristics,which is widely used for wear-resisting lining of hydraulic cyclones, flue gas desulphurization pipes and coal slurry conveyor pipelines.
Thickness available: 4mm - 25mm
Shape available: Tubes , Tee pipes, Elbows, Cones, Rings and so on.
3. Other RBSiC / SiSiC reaction bonded silicon carbide products:
The main products of reaction bonded silicon carbide ceramics are: cross beams, rollers, coling air pipe,burner nozzles,thermocouple protecting tubes,temperature measuring parts, radiant tubes, desulfurization nozzles, crucible,batts, wear resistant lining materials,plates, seals, rings and special shaped structural parts.
| SISIC Technical Date |
| Item | Unit | Data |
| Max temperature of application | ºC | 1380 |
| Density | g/cm3 | ≥3.02 |
| Open porosity | % | <0.1 |
| Bending strength | Mpa | 250(20ºC) |
| | Mpa | 280(1200ºC) |
| Modulus of elasticity | Gpa | 330(20ºC) |
| | Gpa | 300(1200ºC) |
| Thermal conductivity | W/m.k | 45(1200ºC) |
| Coefficient of thermal expansion | K-1×10-6 | 4.5 |
| Rigidity | | 13 |
| Acid alkaline-proof | | Excellent |

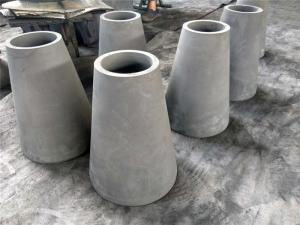

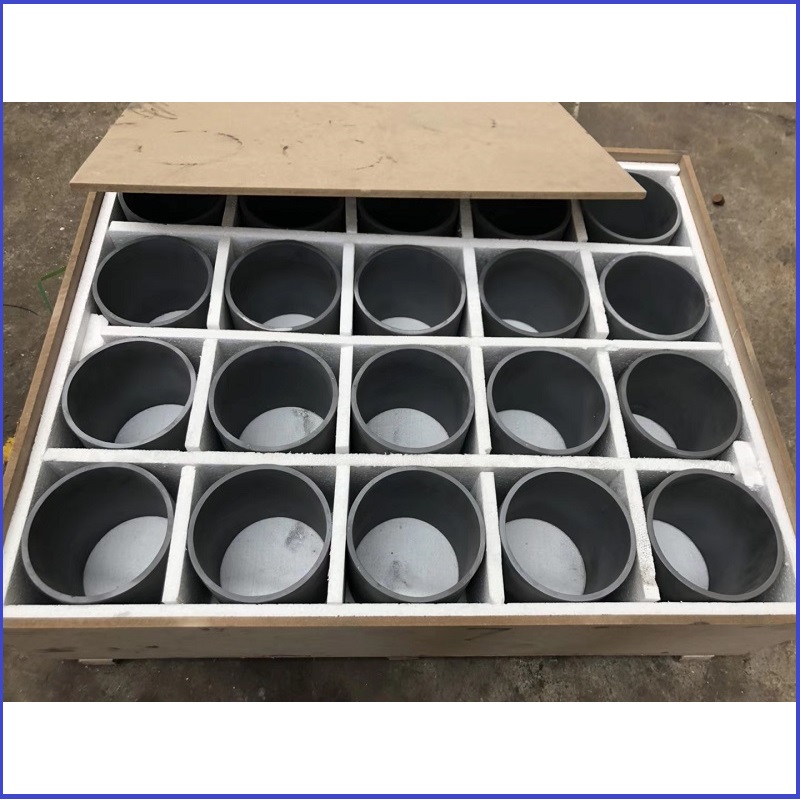

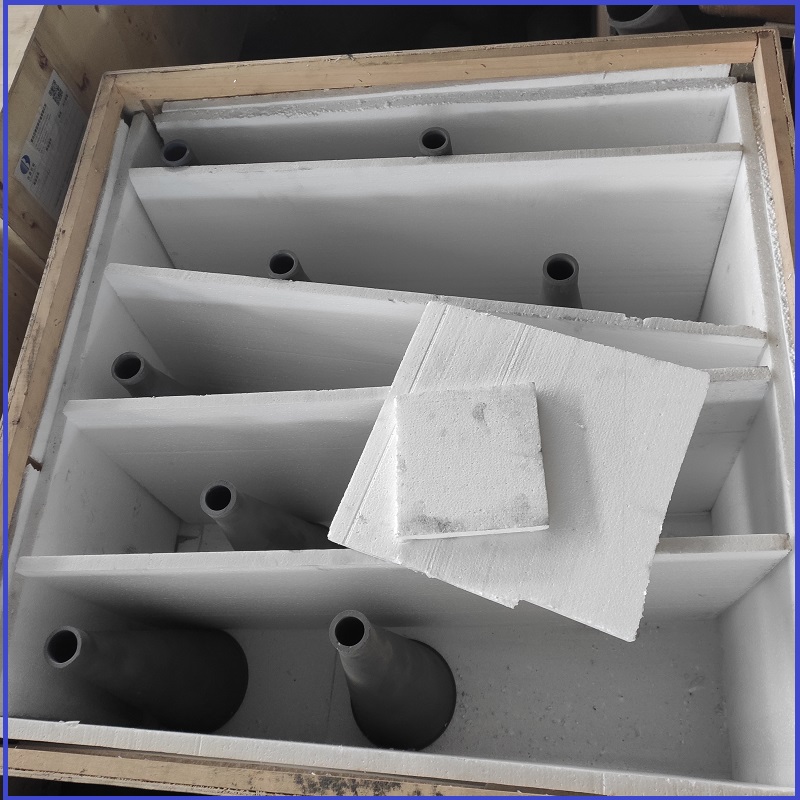

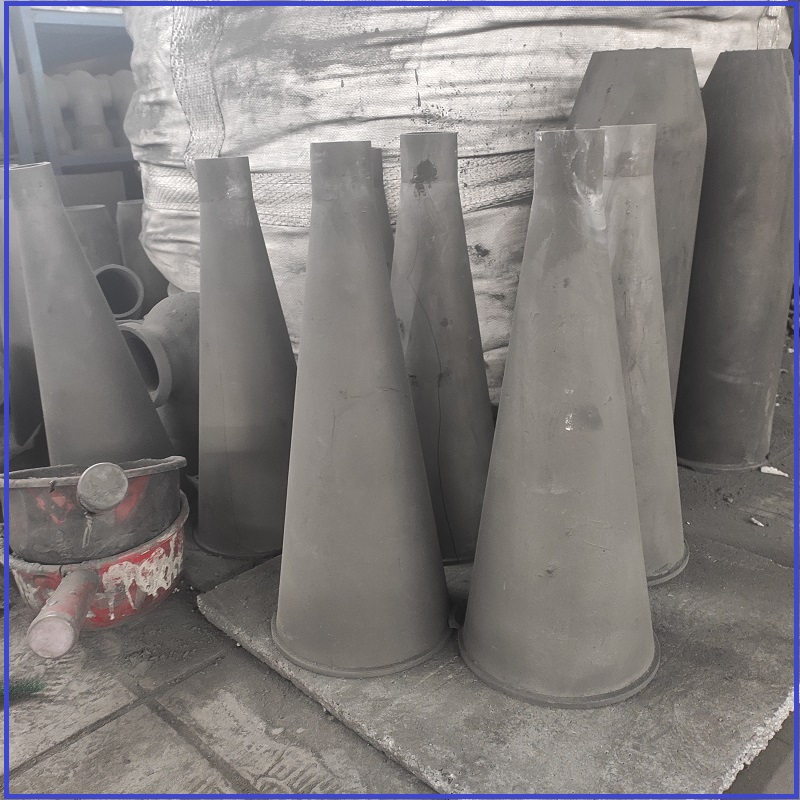

Photos of reference
