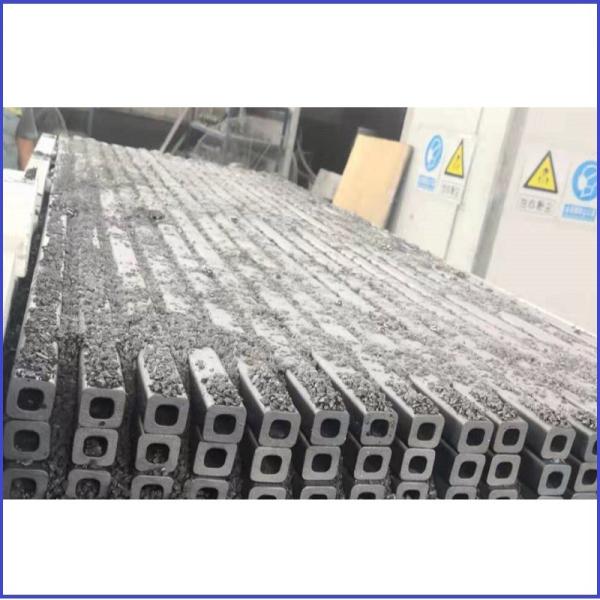

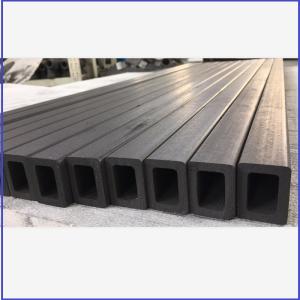

Refractory SiSiC Sic Beam Loading Beam
Product Description
Silicon carbide tube has low coefficient of the thermal expansion,high thermal conductivity rate and perfect thermal shock resistance.It could be used in high speed thermal impact environment for many times.Silicon carbide has the performance of high strength and good thermal impact resistance.It can be used in the severe environment (such as high temperature,corrosion,erosion,etc)for long term.Silicon carbide is ideal material for ceramic industry, widely used in hightemperature kiln.
Silicon Carbide Product Specification:
| ITEM | | RBSIC (SISIC) | SSIC |
| | UNIT | DATA | DATA |
| MAX TEMPERATURE OF APPLIC ATION | C | 1380 | 1600 |
| DENSITY | g/cm3 | >3.02 | >3.1 |
| OPEN POROSITY | % | <0.1 | <0.1 |
| BENDING STRENGTH | Mpa | 250(20c) | >400 |
| MPa | 280 (1200 C) | |
| MODULUS OF ELASTICITY | Gpa | 330 (20c) | 420 |
| GPa | 300 (1200c) | |
| THERMAL CONDUCTIVITY | W/m.k | 45 (1200 c) | 74 |
| COEFFICIENT OF THERMAL EXPANSION | K x 10 | 4.5 | 4.1 |
| VICKERS HARDNESS HV | Gpa | 20 | 22 |
| ACID ALKALINE - PROFF | | Excellent | Excellent |
RFQ
1. Q : Where is your factory ?
A : Our factory is at sisic city Weifang . Welcome you to visit our factory .
2. Q : What's your minimum order quantity , can you sent us sampels ?
A : Our MOQ is 1 pcs . It is really our pleasure to sent you our stock products as free sampels for you checking .
3. Q : What's the delivery time of your products ?
A : In general , the delievry time is 20 days , and we often advance delivery .
4. Q : Can we customized our products as our own needs ?
A : Surely , We have our own brand , and we also a OEM .We can proudce as your requirments .And our professional engineer will sent you mature solutions .
If you have another question, pls feel free to contact us as below:
Yui-Weifang Better ceramics
Export Department
Weifang Better ceramics Co., Ltd
Email:yui@wf-better.com
TEL:+86-536-2693828
MOB.:+86 18615910108
Adress:Hujiazhuang Industrial Park,Gaomi,Shandong,China
