SISIC silicone carbide beam 6mm thickness production of daily-use ceramics

Brand Name : BD

Model Number : Customer requirement

Certification : ISO9001

Place of Origin : Weifang,China

MOQ : 50PC

Price : USD10-100/pc

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000pc/Month

Delivery Time : 35-50days

Packaging Details : Wooden case of plywood

Material : Reaction Boned Silicon Carbide(SISIC/RBSIC)

Application : Structure Ceramic

Shape : Customized

Raw material : Imported from Germany

Size : Size Customized

Working temperature : 1380℃

Contact Now

SISIC silicone carbide beam 6mm thickness production of daily-use ceramics

1. HCR brand customized silicone carbide beam 6mm 7mm thickness

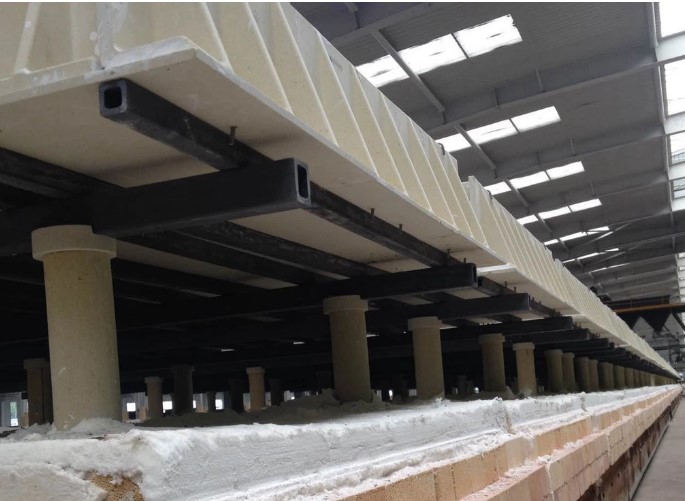

SISIC Beam Silicon Carbide Square Tubesmainly made by SiSiC (RBSiC). Max working temperature 1380C. Our beams are widely used for the loading structure system of tunnel kiln, shuttle kiln and other kilns.

2. Features of sic beam kiln furniture

1. Excellent high-temperature bending strength and oxidation resistance

2. Long service life in high temperature without breaking, bending and deformation

3. Strong wear resistance

3. Application

1. Used in the production of Daily-use ceramics, sanitary ceramics, building ceramics, glass and magnetic materials.

2. The service life is more than 10 times that of aluminum oxide ceramic rollers.

SISIC silicone carbide beam 6mm thickness production of daily-use ceramics

4. Index of sic beam kiln furniture

Item	Unit	Data
Operating Temperature	℃	1380
Density	g/cm³	≥3.02
Porosity	%	< 0.1
Bending Strength	Mpa	250(20℃)
Bending Strength	Mpa	280 (1200℃)
Elastic Modulus	Gpa	330(20℃)
Elastic Modulus	Gpa	300 (1200℃)
Thermal Conductivity	W/m.k	45 (1200℃)
Thermal Expansion Coefficient	K-1×10-6	4.5
Mohs Hardness		13
Alkalinity and Acidity		Excellent

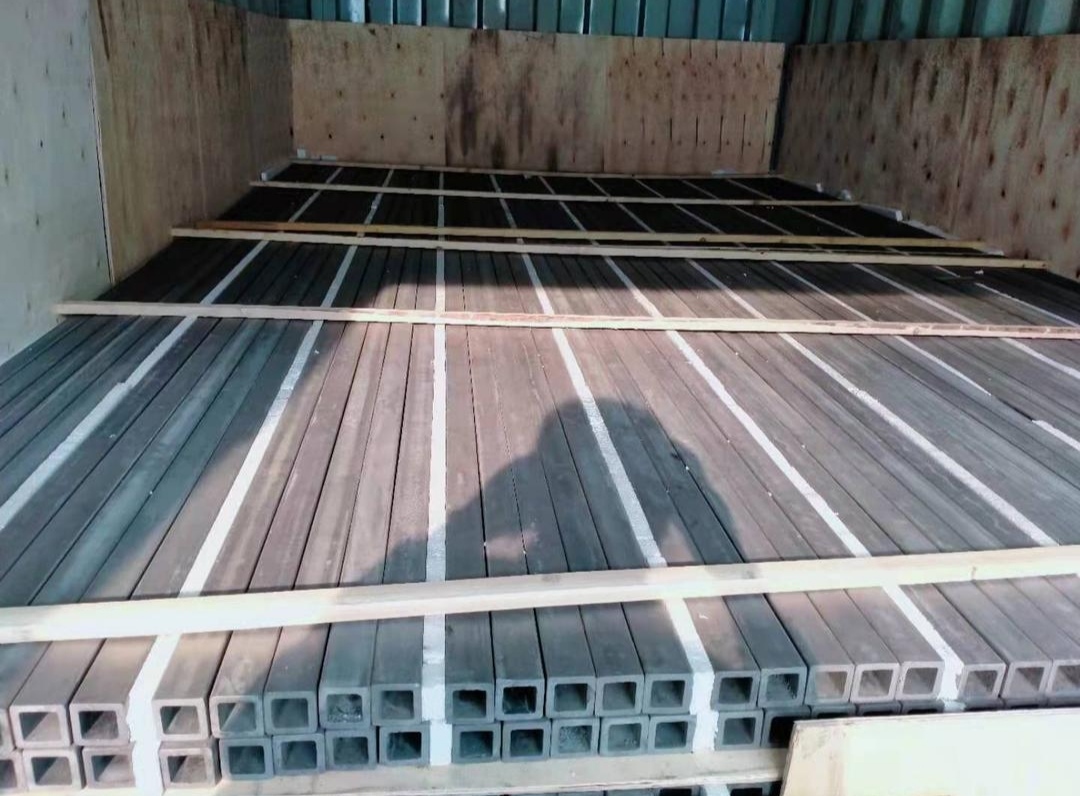

5. Packaging detail of Silicon Carbide Square

1.International standard seaworthy exportable packing.
2.Wooden pallet.
3.Wooden / bamboo case (box)..
4.Further packing information will be based on customer's requirements.

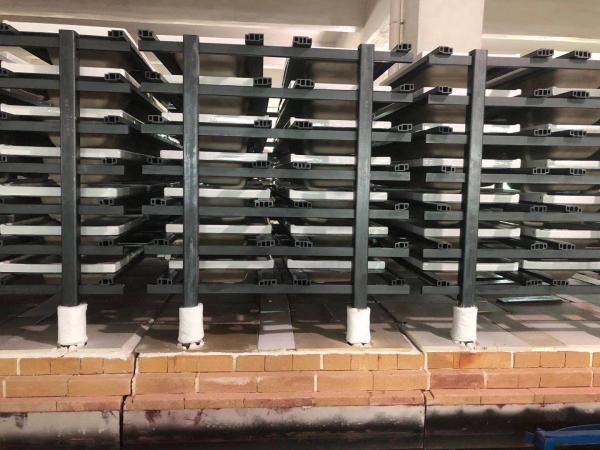

SISIC silicone carbide beam 6mm thickness production of daily-use ceramics Images
