BD Sisic Roller Size 50x6x1500 Good Thermal Conductivity For Sanitary Kiln

Brand Name : BD

Model Number : 50x6x1500

Certification : ISO9001

Place of Origin : China

MOQ : 100pcs

Price : Price discussion

Payment Terms : TT

Supply Ability : 5000PCS/MONTH

Delivery Time : 20days

Packaging Details : standard woodern case

Material : Reaction Bonded Silicon Carbide

Max temperature of application : 1380°

Density : >3.02g/cm3

Length : 1500-2800mm

Thermal Conductivity : 45(1200℃) w/m.k

Coefficient of Thermal Expansion : 4.5

Moh's hardness : 9.15

Acid Alkaline Proof : excellent

Contact Now

sisic roller size 50x6x1500 with good thermal conductivity used in sanitary kiln

The Bending Strength of Beams is 250MP safety coefficient is 5. Concentrated Loading=the Value in The Table x1/L.

Uniformly Distribute Loading= The Value in the Table Accordingly x 1/L.

The temperature is 1380℃

SISIC(RBSIC) Rollers is mainly used for daily porcelain, sanitary porcelain, building ceramics and magnetic materials, such as roller kiln, high temperature burning with ideal kiln, with a long service life. It has high temperature strength, thermal shock resistance, high temperature creep resistance, strong resistance, good wear resistance, etc.

BD Sisic Roller Size 50x6x1500 Good Thermal Conductivity For Sanitary Kiln

Bearing Capacity SISIC(RBSIC) Rollers
Sectional Dimension(mm)	Thickness(mm)	Concentrated Loading (kg.m/L)	Uniformly Distributed Loading (kg.m/L)
Size of Section	Thickness(mm)	Concentrated Loading (kg.m/L)	Uniformly Distributed Loading (kg.m/L)
30	5	43	86
35	5	63	128
38	5	77	154
40	6	97	194
45	6	130	260
50	6	167	334
60	7	283	566
70	7	405	810

BD Sisic Roller Size 50x6x1500 Good Thermal Conductivity For Sanitary Kiln

Product Tags:

silicon carbide pipe

silicon carbide tube

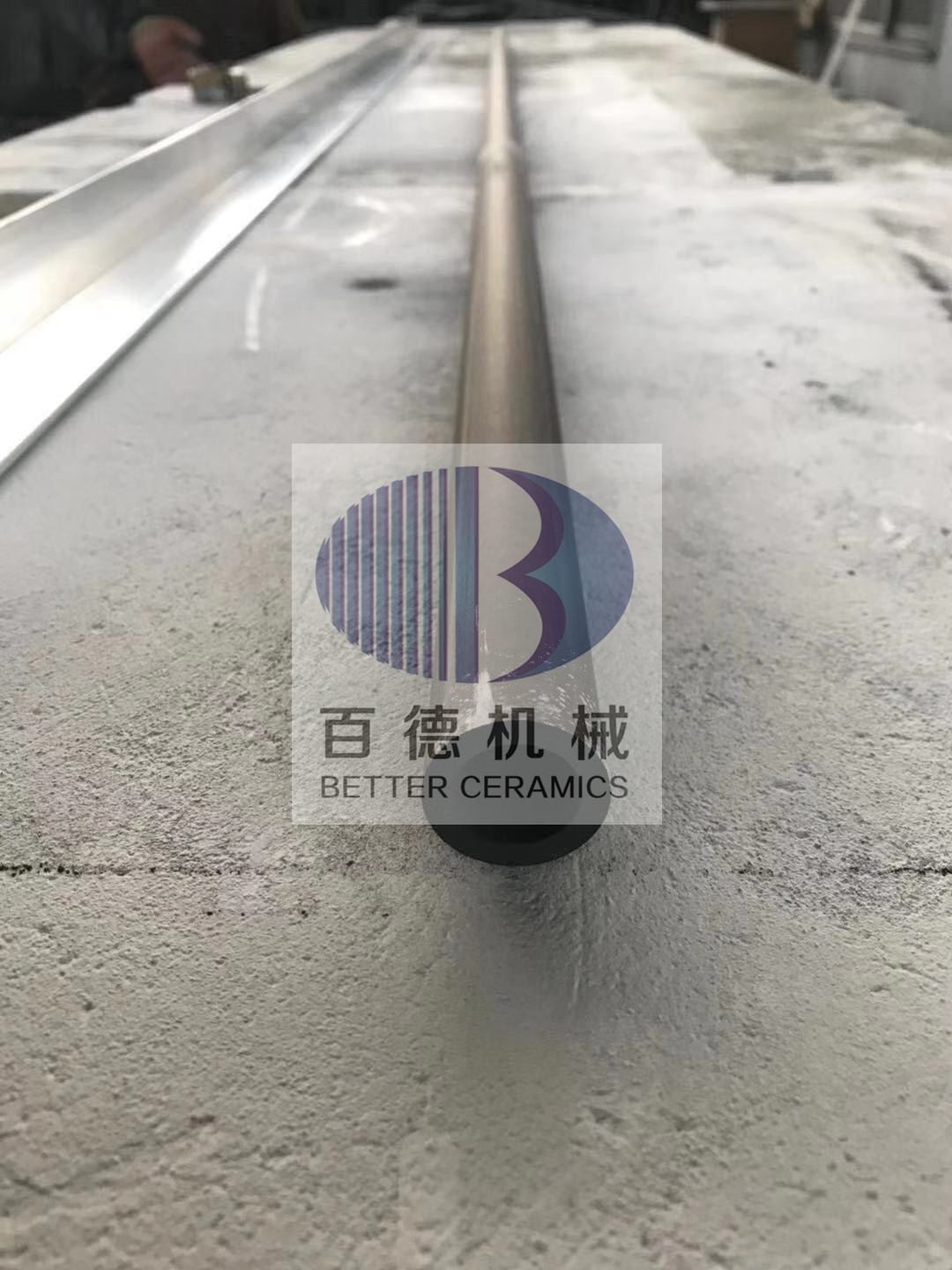

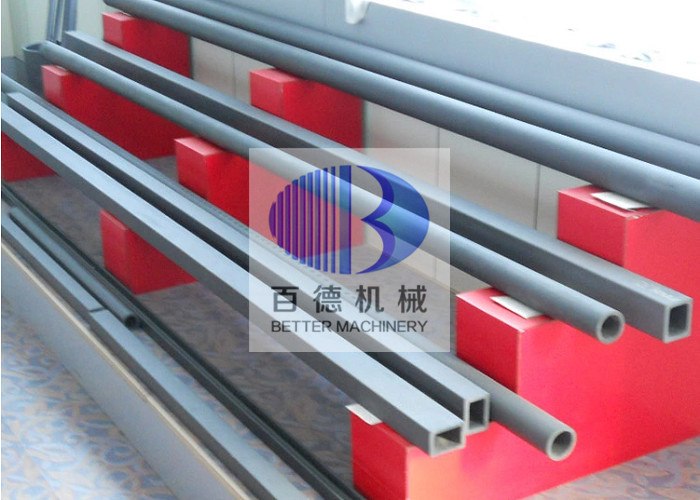

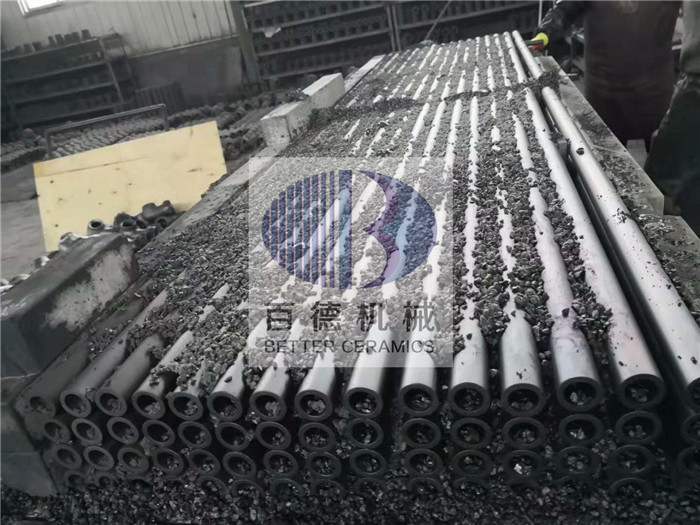

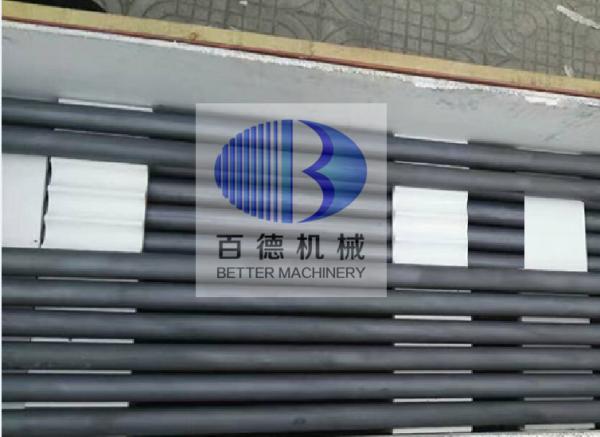

BD Sisic Roller Size 50x6x1500 Good Thermal Conductivity For Sanitary Kiln Images
