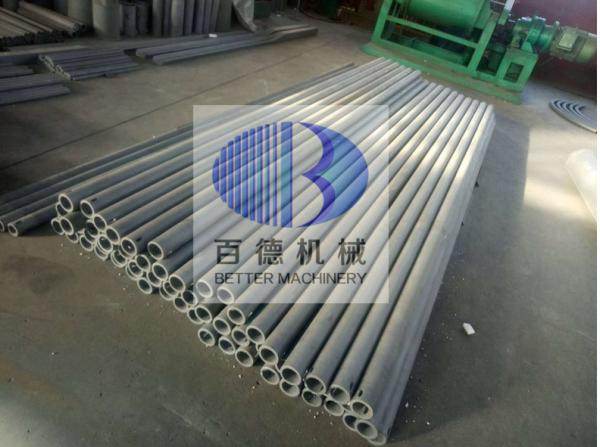

60x6x3170 sisic roller used in sanitary kiln with good thermal conductivity
Sisic Roller presentation :
SISIC(RBSIC) Rollers is mainly used for daily porcelain, sanitary porcelain, building ceramics and magnetic materials, such as roller kiln, high temperature burning with ideal kiln, with a long service life. It has high temperature strength, thermal shock resistance, high temperature creep resistance, strong resistance, good wear resistance, etc.
Sisic Roller Good Thermal Conductivity :
The SISIC(RBSIC) Rollers and Rollers to ceramic materials as hard as diamonds.The properties of silicon carbide are largely similar to those of diamonds.It is not only the lightest in weight, but also the hardest ceramic material, with excellent thermal conductivity, low thermal expansion, extremely acid and alkali resistance using silicon carbide ceramics material properties can be stable at high temperatures up to 1,400°C above.Young's modulus above 400 GPa ensures excellent dimensional stability.
Sisic Roller Wear Resistance :
These material properties make silicon carbide destined for use as a building material.The excellent resistance of silicon carbide to corrosion, wear, and erosion is as good as its ability to withstand friction and wear.The components are used in chemical plants, rolling mills, expanders and extruders, or for example nozzles.Silicon carbide is toxicologically safe and can be used in the food industry.Another typical application of silicon carbide elements is dynamic sealing technology and mechanical seals using friction bearings, such as in pumps and driveline systems.
When used with active high-temperature media, SiC provides extremely economical solutions and longer tool life compared to metals. SiC ceramics are also ideal for ballistic missiles, chemical production, energy technology, harsh conditions in paper making, and as components in piping systems.
| Bearing Capacity SISIC(RBSIC) Rollers |
| Sectional Dimension(mm) | Thickness(mm) | Concentrated Loading (kg.m/L) | Uniformly Distributed Loading (kg.m/L) |
| Size of Section |
| 30 | 5 | 43 | 86 |
| 35 | 5 | 63 | 128 |
| 38 | 5 | 77 | 154 |
| 40 | 6 | 97 | 194 |
| 45 | 6 | 130 | 260 |
| 50 | 6 | 167 | 334 |
| 60 | 7 | 283 | 566 |
| 70 | 7 | 405 | 810 |
The Bending Strength of Beams is 250MP safety coefficient is 5. Concentrated Loading=the Value in The Table x1/L.
Uniformly Distribute Loading= The Value in the Table Accordingly x 1/L.
The temperature is 1380℃
